3.7KW 35NM 1000rpm CNC servo motor driver with 1024 line encoder used to CNC machine

Name: 37KW 35NM 1000rpm CNC servo motor driver with 1024 line encoder used to CNC machine
Brand: SZGH
Price: 1 USD

China 3.7KW 35NM 1000rpm CNC servo motor driver with 1024 line encoder used to CNC machine wholesale

Brand Name : SZGH

Model Number : SZGH-18370BC

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : Packaged with International Standard

Frame Size : 180mm

Continuous Torque : 35N•m

Peak Torque : 70N•m

Rated Power : 3700W

Rated Voltage : 220/380V

Rated Current : 16/10A

Rated Speed : 1500rpm

Rotor Inrtia : 8.6*10-3kg•m2

Diameter of Axle : 35mm

Weight : 30.5kg

Contact Now

3.7KW 35NM 1000rpm CNC servo motor driver with 1024 line encoder used to CNC machine

SZGH-18370BC 3700W SERVO MOTOR with 1000RPM,35NM torque, it can be work with 220V or 380v per different application demand to provide.

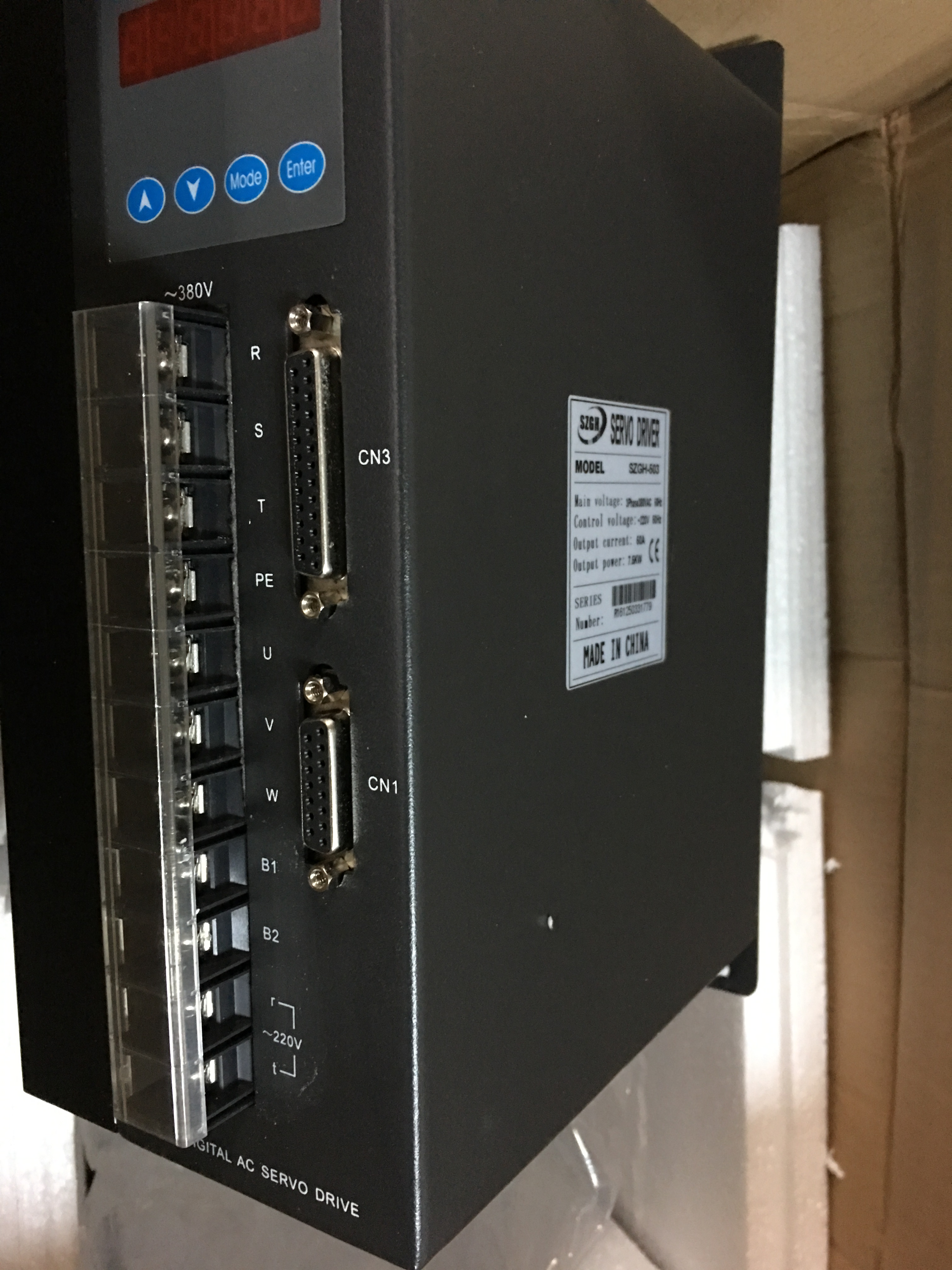

There are two kinds type servo driver, SZGH-501 & SZGH-503 that matching for 3.8KW servo motor.

Specification:

Motor Model	SZGH-18370BC
Rated Power(KW)	3.7
Rated Voltage (V)	220/380
Rated Current (A)	12/7.5
Rated Speed (RPM)	1000
Rated Torque (NM)	35
Peak Torque (NM)	70
Voltage Counstant(v/1000r/min)	138/224
Torque Coefficient(NM/A)	2.25/3.6
Rotor Inertia(Kg.m2)	6.1*10
Line-Line Resistance(Ω)	0.48/1.37
Line-Line Inductance(mH)	3.26/8.6
Machanical Time-Constant(Ms)	6.79/6.27
Encoder Resolution (PPR)	2500
Insulation Class	Class F
Safet Class	IP65
The Operating of Evironmenal Condition	Temperature:-20℃- +45℃
Weight(Kg)	25.5
Package	with air bag +polyfoam +carton+wooden

Application:

CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment,

robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other requirements of the relatively high equipment.

3.7KW 35NM 1000rpm CNC servo motor driver with 1024 line encoder used to CNC machine

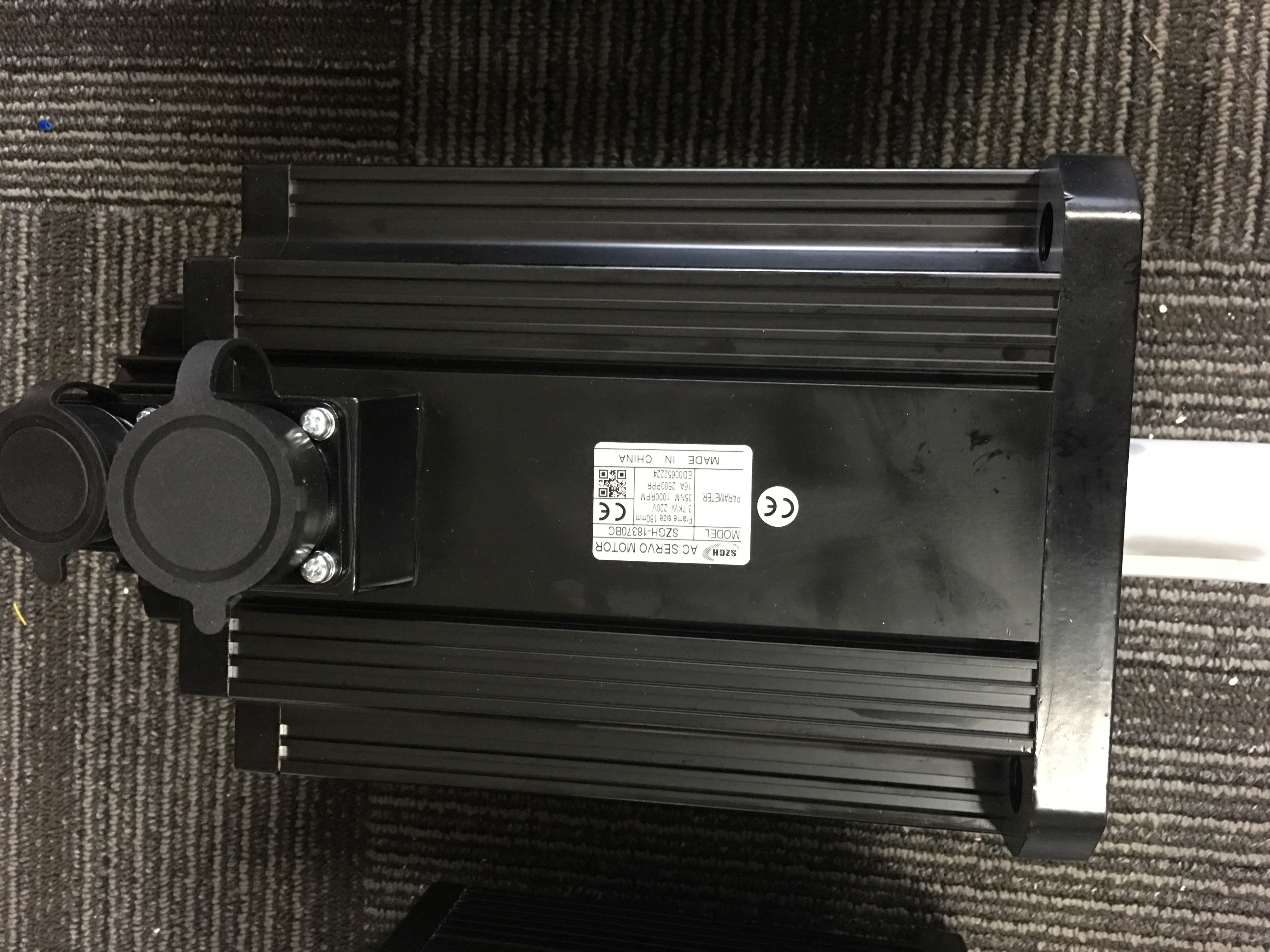

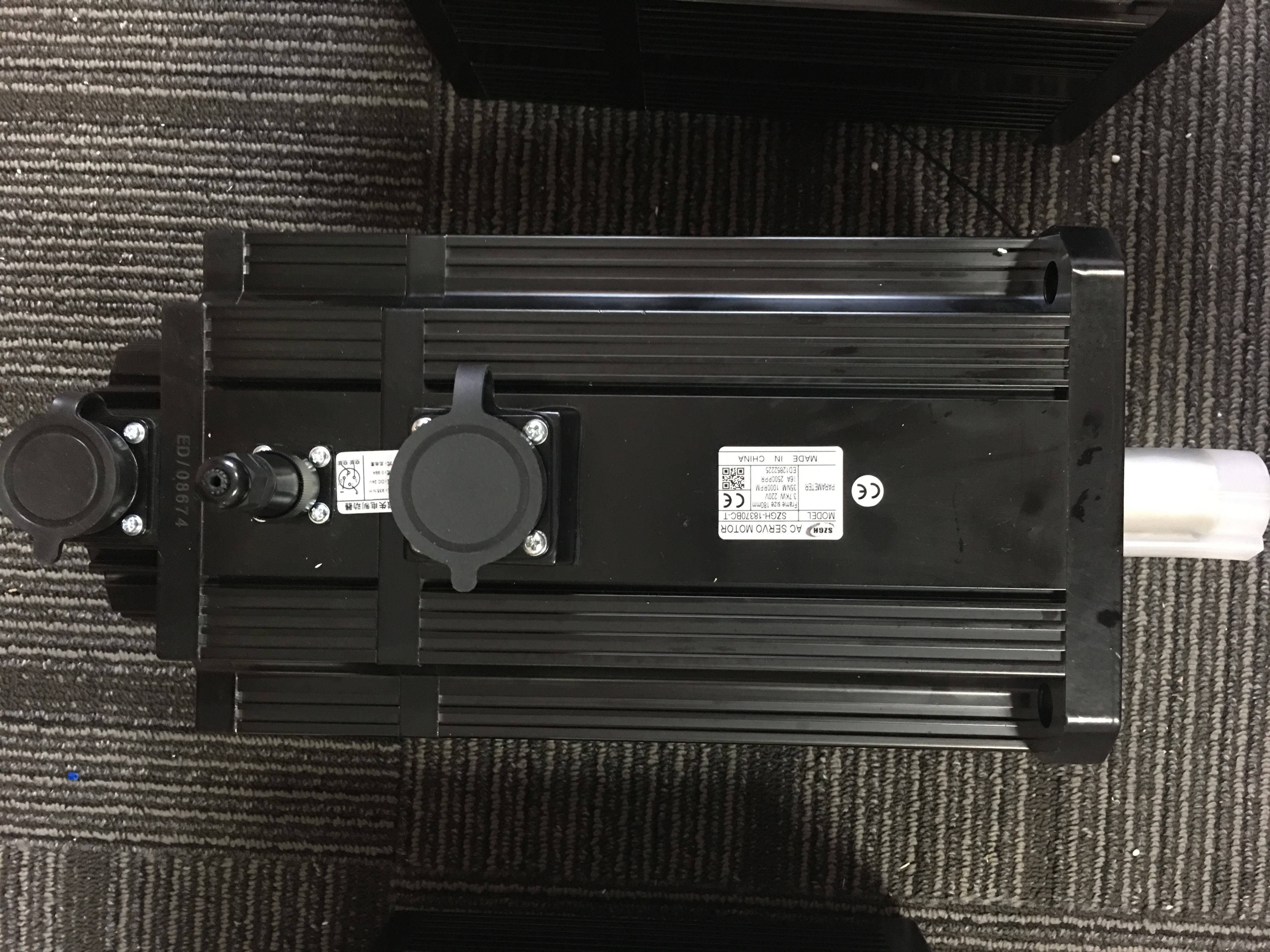

Product picture:

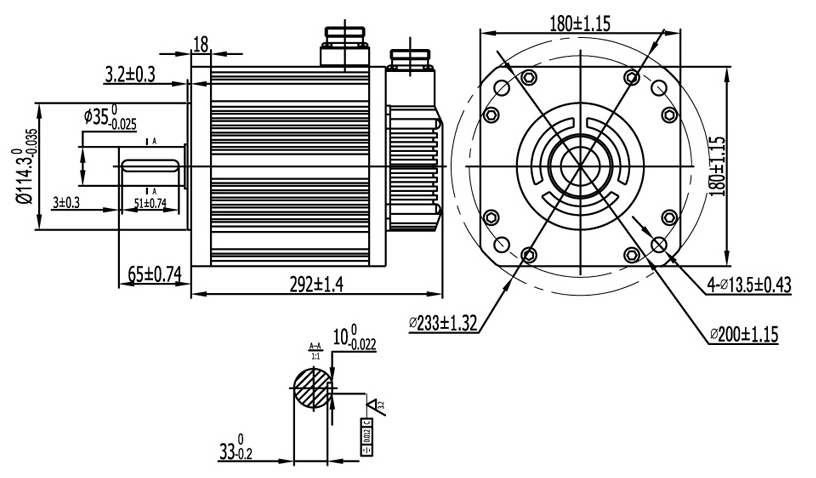

Dimension:
