5.5 KW 8.6 kgm^210e-3 380 volt High Torque affordable AC Drive Servo Motor

Name: 55 KW 86 kgm210e3 380 volt High Torque affordable AC Drive Servo Motor
Brand: SZGH
Price: 1 USD

China 5.5 KW 8.6 kg*m^2*10e-3 380 volt High Torque affordable AC Drive Servo Motor wholesale

Brand Name : SZGH

Model Number : SZGH-18550CC

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : Packaged with International Standard

Frame Size : 180mm

Rated Power : 5.5KW

Continuous Torque : 35NM

Peak Torque : 70NM

Rated Speed : 1500RPM

Rated Current : 12A

Rated Voltage : 380VAC

Rotor Inertia : 8.6 kg*m^2*10e-3

Encoder Resolution : 2500PPR

Diameter of Axle : 35mm

Contact Now

5.5 KW 8.6 kg*m^2*10e-3 380 volt High Torque affordable AC Drive Servo Motor

SZGH-18550CC is 5.5KW 35NM 1500RPM ac servo motor , high speed, high precision, low motor noise and low heating performance, while at the cost of normal servo systems.

There is one servo driver, SZGH-503, that can control 5.5KW servo motors.

Application

CNC Machinery, printing equipment, packaging equipment, textile equipment, laser processing equipment,

robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other

requirements of the relatively high equipment.

5.5 KW 8.6 kg*m^2*10e-3 380 volt High Torque affordable AC Drive Servo Motor

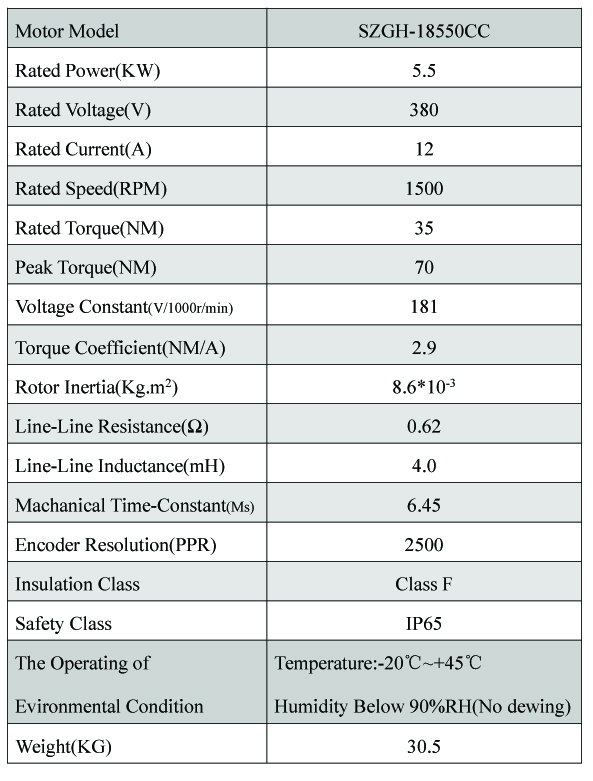

Specifications

5.5 KW 8.6 kg*m^2*10e-3 380 volt High Torque affordable AC Drive Servo Motor

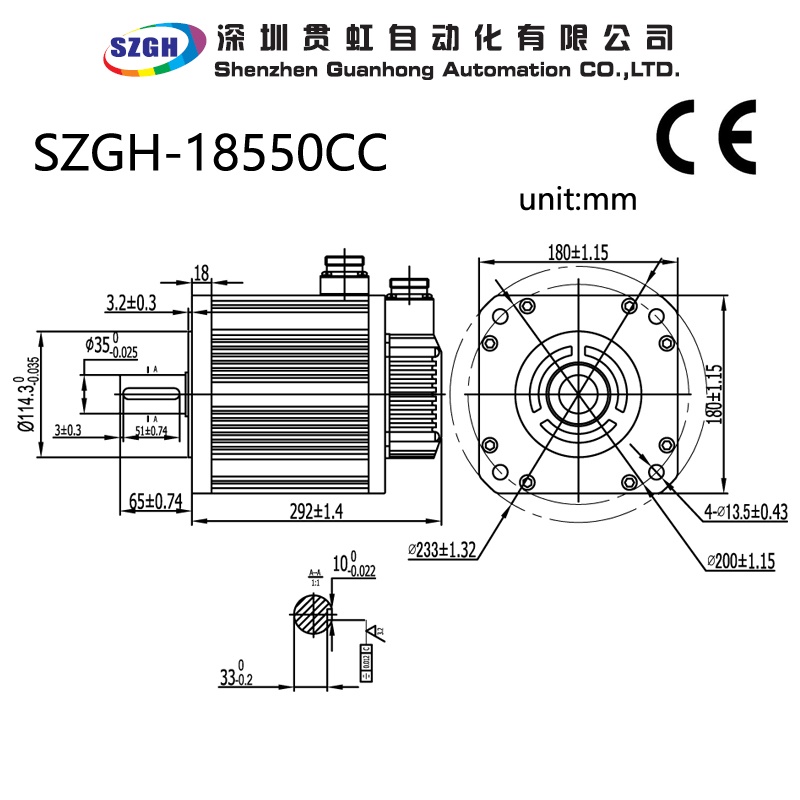

Dimension

5.5 KW 8.6 kg*m^2*10e-3 380 volt High Torque affordable AC Drive Servo Motor

We Can Support Total CNC Control System!!!

5.5 KW 8.6 kg*m^2*10e-3 380 volt High Torque affordable AC Drive Servo Motor
