13.5A 15NM 3.8KW High Power 2500RPM AC CNC Servo Motor with Brushless

Name: 135A 15NM 38KW High Power 2500RPM AC CNC Servo Motor with Brushless
Brand: SZGH
Price: 1 USD

China 13.5A 15NM 3.8KW High Power 2500RPM AC CNC Servo Motor with Brushless wholesale

Brand Name : SZGH

Model Number : SZGH-13380CC

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : Packaged with International Standard

Frame Size : 130mm

Rated Power : 3.8KW

Continuous Torque : 15NM

Peak Torque : 30NM

Rated Speed : 2500RPM

Rated Current : 13.5A

Rated Voltage : 220VAC

Rotor Inertia : 2.77kg*m^2*10e-3

Encoder Resolution : 2500PPR

Diameter of Axle : 22mm

Contact Now

13.5A 15NM 3.8KW High Power 2500RPM AC CNC Servo Motor with Brushless

SZGH-13380CC is 3.8KW 15NM 2500RPM ac servo motor , high speed, high precision, low motor noise and low heating performance, while at the cost of normal servo systems.

There is one servo driver,SZGH-501,that can control two pcs of 3.8KW servo motors.

Application

CNC Machinery, printing equipment, packaging equipment, textile equipment, laser processing equipment,

robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other

requirements of the relatively high equipment.

13.5A 15NM 3.8KW High Power 2500RPM AC CNC Servo Motor with Brushless

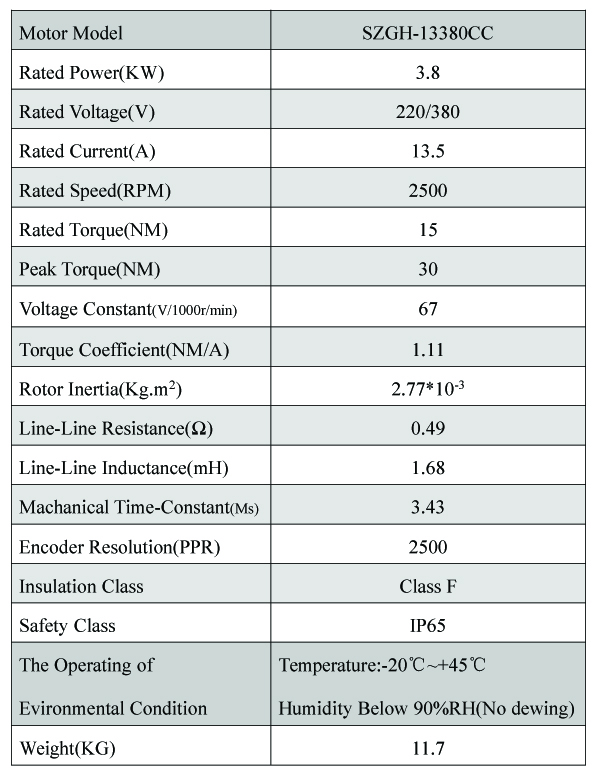

Specifications

13.5A 15NM 3.8KW High Power 2500RPM AC CNC Servo Motor with Brushless

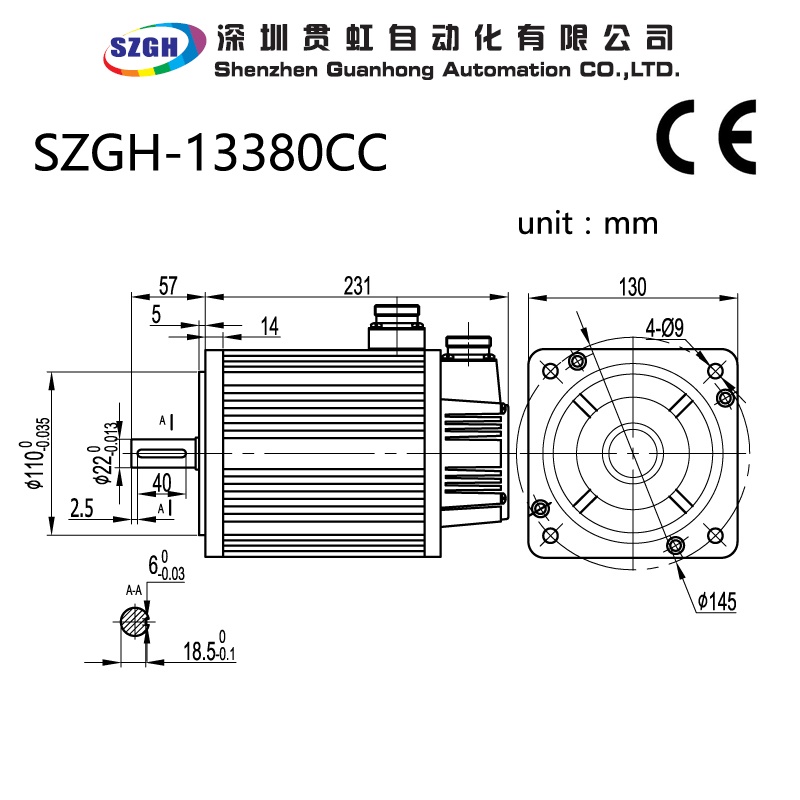

Dimension

13.5A 15NM 3.8KW High Power 2500RPM AC CNC Servo Motor with Brushless

We Can Support Total CNC Control System!!!

13.5A 15NM 3.8KW High Power 2500RPM AC CNC Servo Motor with Brushless
