Continuous Torque 48NM Encoder high-performance CNC Servo Motor with Speed Control

Name: Continuous Torque 48NM Encoder highperformance CNC Servo Motor with Speed Control
Brand: SZGH
Price: 1 USD

China Continuous Torque 48NM Encoder high-performance CNC Servo Motor with Speed Control wholesale

Brand Name : SZGH

Model Number : SZGH-18750CC

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : Packaged with International Standard

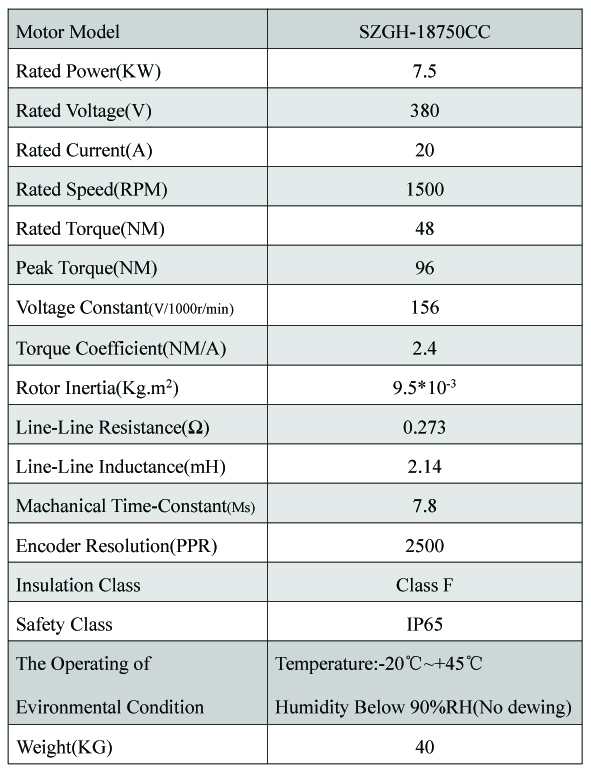

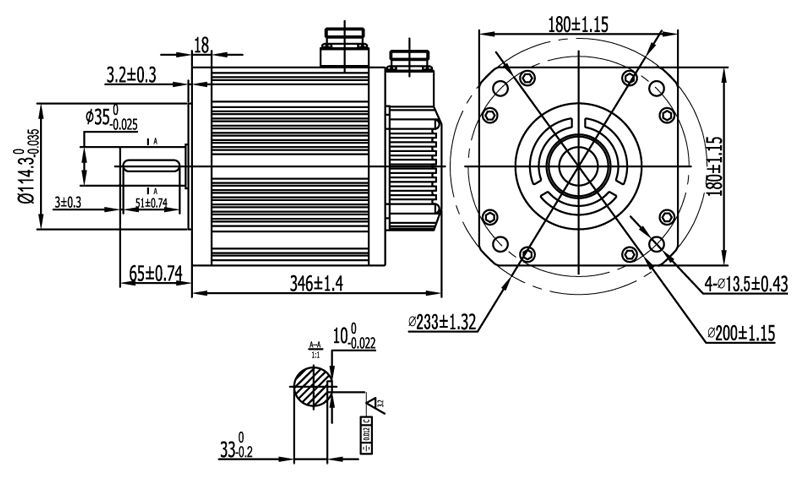

Frame Size : 180mm

Rated Power : 7.5KW

Continuous Torque : 48NM

Peak Torque : 96NM

Rated Speed : 1500RPM

Rated Current : 32A

Rated Voltage : 380VAC

Rotor Inertia : 9.5 kg*m^2*10e-3

Encoder Resolution : 2500PPR

Diameter of Axle : 35mm

Contact Now

Continuous Torque 48NM Encoder high-performance CNC Servo Motor with Speed Control

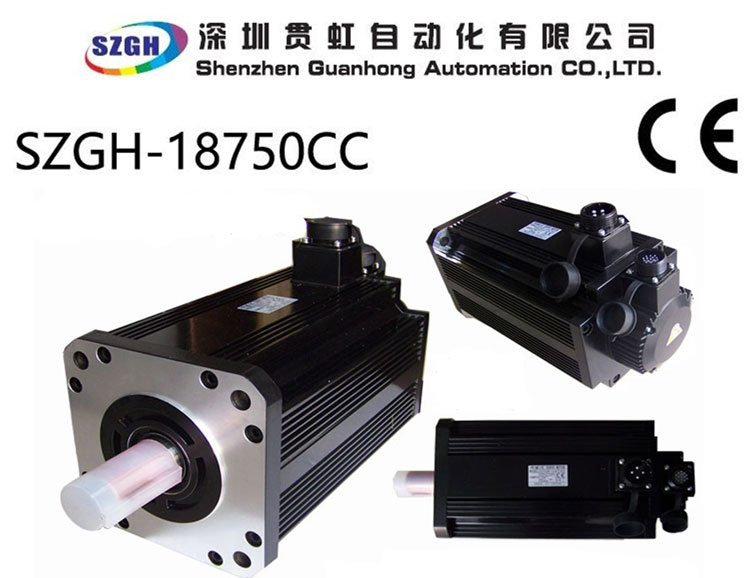

SZGH-18750CC is 7.5KW 48NM 1500RPM ac servo motor , high speed, high precision, low motor noise and low heating performance, while at the cost of normal servo systems.There is one servo driver,SZGH-753,that can control 7.5KW servo motors.
