800W 2000rpm CNC Servo Motor 3.5A 5.4*10-4kg•m2 synchronous motor 220

Product Categories

Shenzhen Guanhong Automation Co., Ltd.

Contact Now

Name: 800W 2000rpm CNC Servo Motor 35A 54104kgm2 synchronous motor 220
Brand: SZGH
Price: 1 USD

Brand Name : SZGH

Model Number : SZGH-11080BC

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : Packaged with International Standard

Frame Size : 110mm

Rated Power : 800W

Continuous Torque : 4N•m

Peak Torque : 12N•m

Rated Speed : 2000rpm

Rated Current : 3.5A

Rated Voltage : 220V

Rotor Inrtia : 5.4*10-4kg•m2

Diameter of Axle : 19mm

Weight : 6kg

Contact Now

800W 2000rpm CNC Servo Motor 3.5A 5.4*10-4kg•m2 synchronous motor 220

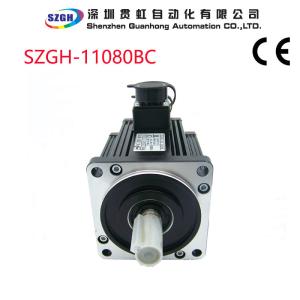

SZGH-11080BC is 800W servo motor with 80 flange, rated torque is 3.5NM, rated speed is 2000RPM. SZGH-301 that matching for 800W servo motor.

There is also one dual servo driver,SZGH-302,that can control two pcs of 800W servo motors synchronously.

Application

CNC Machinery, printing equipment, packaging equipment, textile equipment, laser processing equipment,

robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other

requirements of the relatively high equipment.

800W 2000rpm CNC Servo Motor 3.5A 5.4*10-4kg•m2 synchronous motor 220

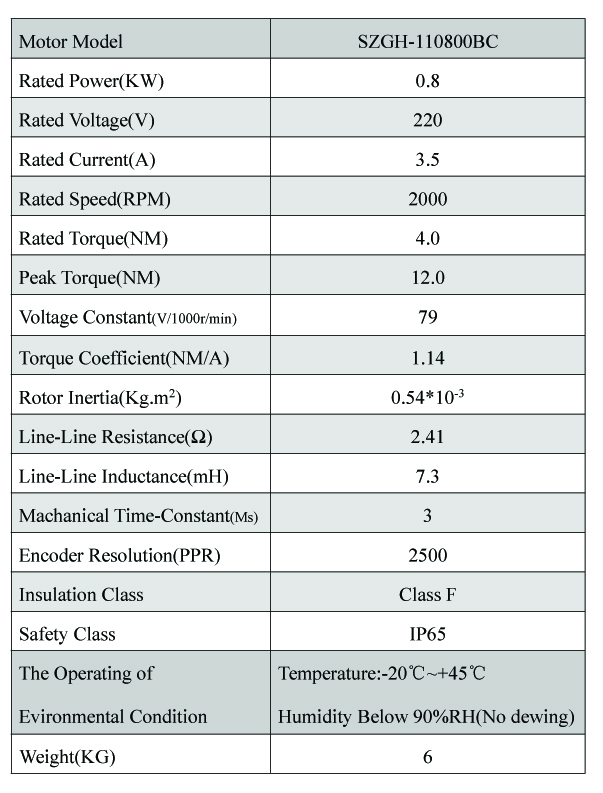

Specifications

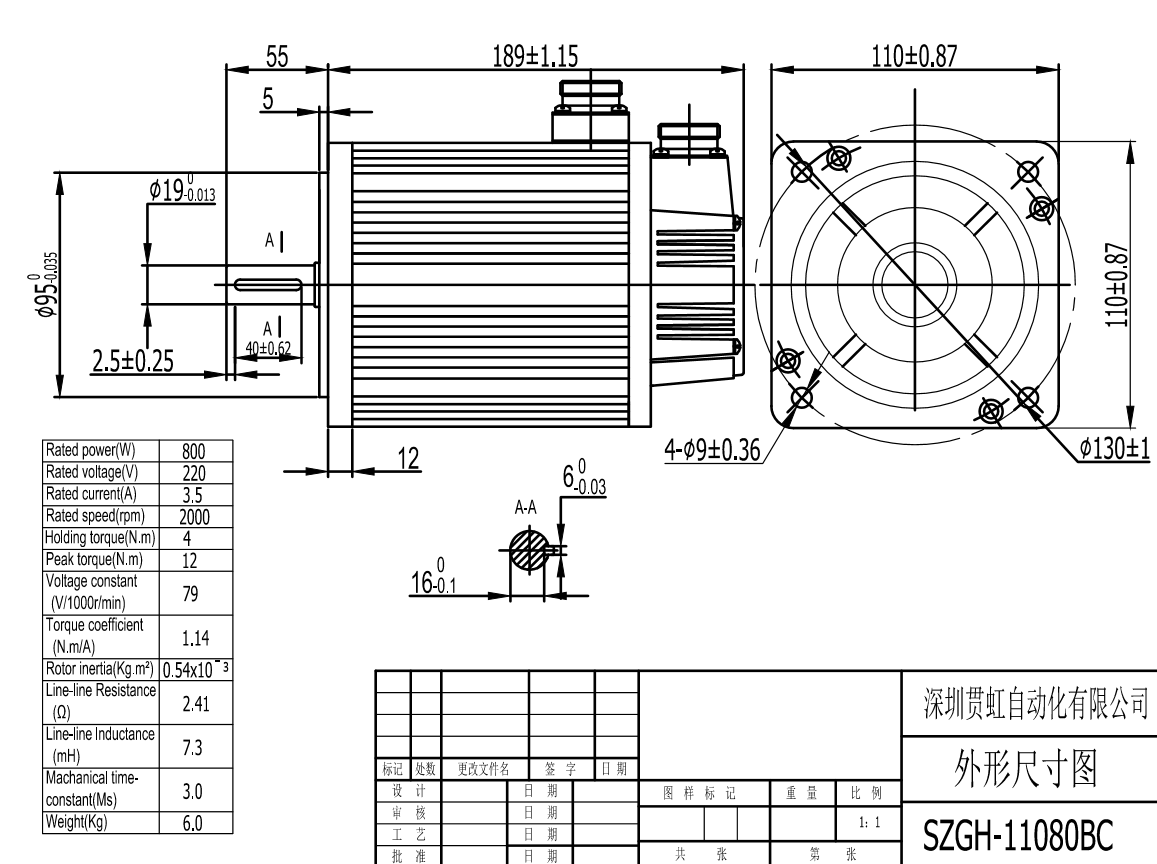

Dimension

Product Tags:

synchronous motor
