Rotor Inrtia 2.63kg.m^2*10e-4 3.5NM speed control ac motor High Rated Speed

Name: Rotor Inrtia 263kgm210e4 35NM speed control ac motor High Rated Speed
Brand: SZGH
Price: 1 USD

China Rotor Inrtia 2.63kg.m^2*10e-4 3.5NM speed control ac motor High Rated Speed wholesale

Brand Name : SZGH

Model Number : SZGH-08075BC

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : Packaged with International Standard

Frame Size : 80mm

Rated Power : 750W

Continuous Torque : 3.5NM

Peak Torque : 10.5NM

Rated Speed : 2000RPM

Rated Current : 3A

Rated Voltage : 220V

Rotor Inrtia : 2.63kg.m^2*10e-4

Encoder Resolution : 2500PPR

Diameter of Axle : 19mm

Weight : 3.9

Matched Driver : SZGH-201/301/020M

Contact Now

Rotor Inrtia 2.63kg.m^2*10e-4 3.5NM High Rated Speed High precision CNC servo motor

SZGH-08075BC is 750W servo motor with 80 flange, rated torque is 3.5NM, rated speed is 2000RPM. compared to 09075D , same rated power with higher rated torque.

There are two kinds type servo driver, SZGH-020M,SZGH-201 & SZGH-301 that matching for 750W servo motor.

There is also one dual servo driver,SZGH-302,that can control two pcs of 750W servo motors synchronously.

Application

CNC Machinery, printing equipment, packaging equipment, textile equipment, laser processing equipment,

robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other

requirements of the relatively high equipment.

Rotor Inrtia 2.63kg.m^2*10e-4 3.5NM speed control ac motor High Rated Speed

Specifications

Rotor Inrtia 2.63kg.m^2*10e-4 3.5NM speed control ac motor High Rated Speed

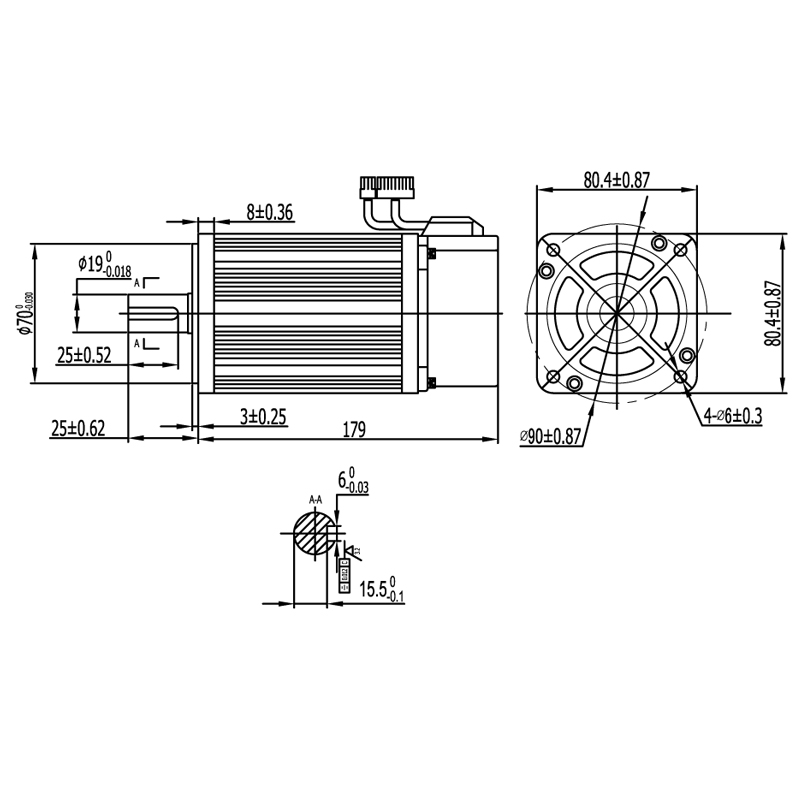

Dimension

Rotor Inrtia 2.63kg.m^2*10e-4 3.5NM speed control ac motor High Rated Speed
