1000W 2500RPM 12NM Frame Size 130mm AC CNC Servo Motor for Automated manufacturing

Product Categories

Shenzhen Guanhong Automation Co., Ltd.

Contact Now

1000W 2500RPM 12NM Frame Size 130mm AC CNC Servo Motor for Automated manufacturing

Name: 1000W 2500RPM 12NM Frame Size 130mm AC CNC Servo Motor for Automated manufacturing
Brand: SZGH
Price: 1 USD

China 1000W 2500RPM 12NM Frame Size 130mm AC CNC Servo Motor for Automated manufacturing wholesale

Brand Name : SZGH

Model Number : SZGH-13100CC

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : Packaged with International Standard

Frame Size : 130mm

Rated Power : 1.0KW

Continuous Torque : 4.0NM

Peak Torque : 12NM

Rated Speed : 2500RPM

Rated Current : 4.0A

Rated Voltage : 220VAC

Rotor Inertia : 8.5kg*m^2*10e-4

Encoder Resolution : 2500PPR

Diameter of Axle : 22mm

Contact Now

1000W 2500RPM 12NM Frame Size 130mm AC CNC Servo Motor for Automated manufacturing

SZGH-13100CC is 1.0KW 4.0NM ac servo motor , high speed, high precision, low motor noise and low heating performance, while at the cost of normal servo systems.

There are two kinds type servo driver, SZGH-201,that matching for 1.0KW servo motor.

There is also one dual servo driver,SZGH-302,that can control two pcs of 1.0KW servo motors synchronously.

Application

CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment,

robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other

requirements of the relatively high equipment.

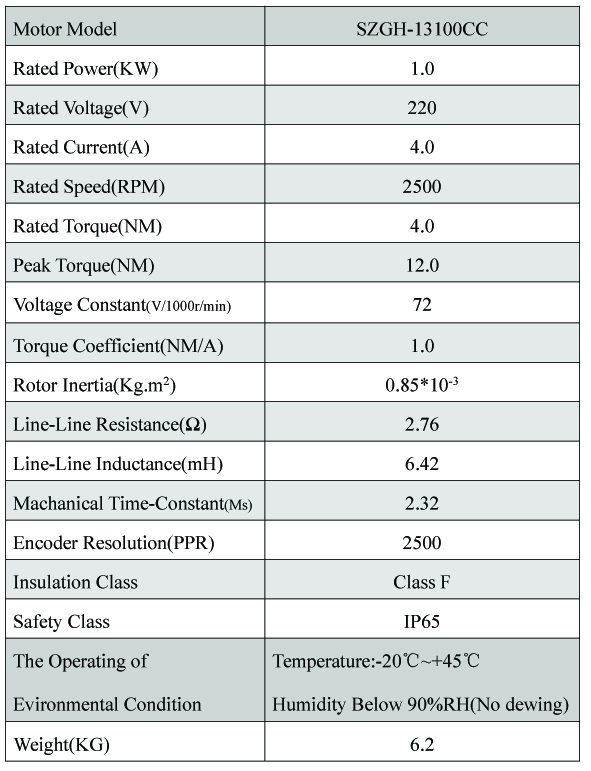

Specifications

1000W 2500RPM 12NM Frame Size 130mm AC CNC Servo Motor for Automated manufacturing

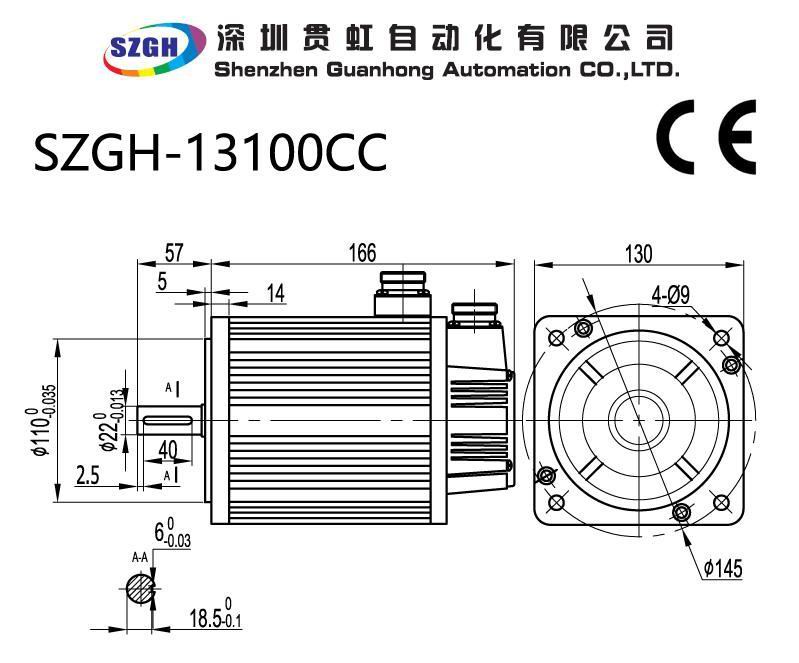

Dimension

1000W 2500RPM 12NM Frame Size 130mm AC CNC Servo Motor for Automated manufacturing

We Can Support Total CNC Control System!!!

1000W 2500RPM 12NM Frame Size 130mm AC CNC Servo Motor for Automated manufacturing
