130mm Flange CNC Servo Motor High Power / Speed Control Ac Motor SZGH-13100CC

Shenzhen Guanhong Automation Co., Ltd.
Contact Now

130mm Flange CNC Servo Motor High Power / Speed Control Ac Motor SZGH-13100CC

Brand Name : SZGH

Model Number : SZGH-13100CC

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : with international standard carton or wooden box

Flange : 130mm

Model : SZGH-13100CC

H.S code : 9032899003

Power : 1kw

feature : with high quality of encoder

weight : 6.2kg

Rated Torque : 4Nm

Rated Speed : 2500rpm

Contact Now

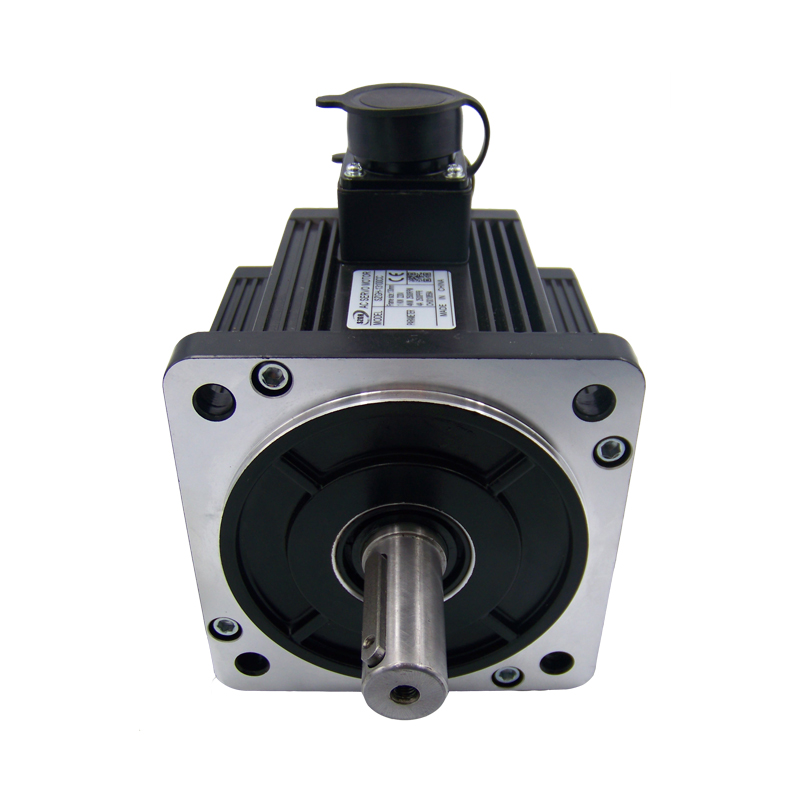

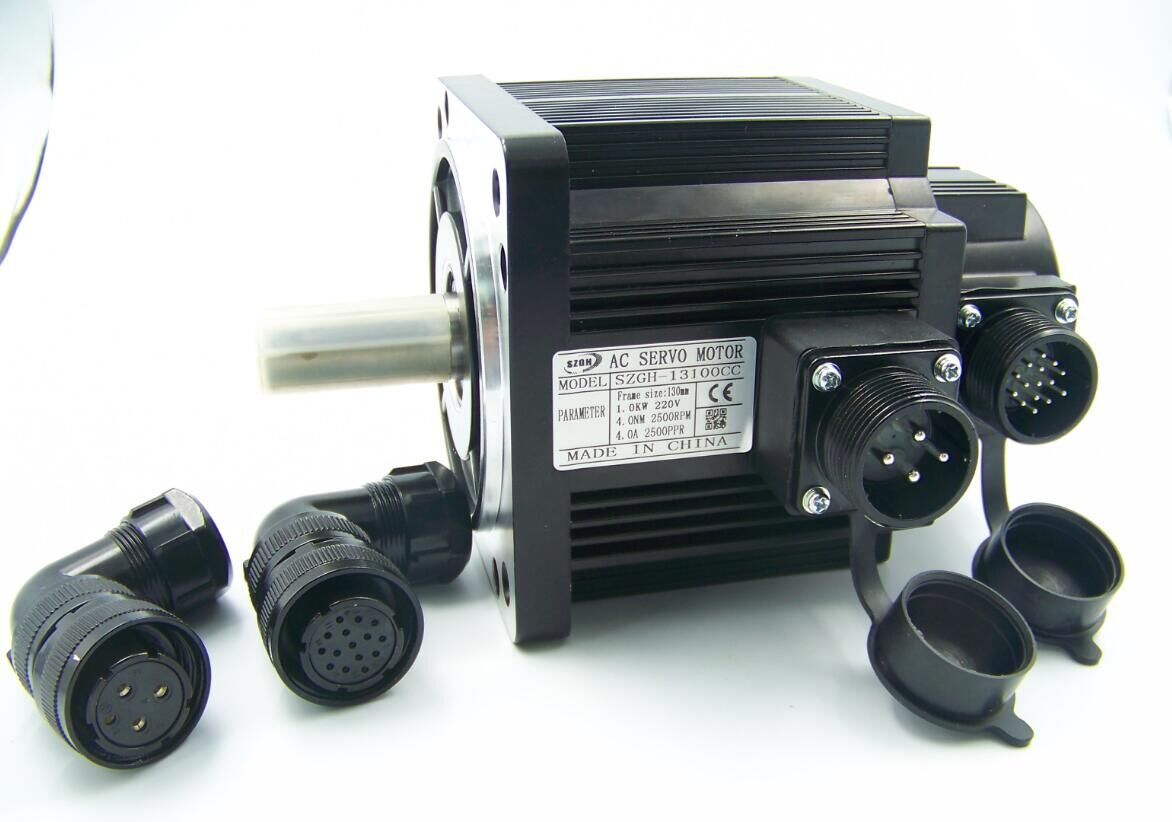

AC 220V 1000w 130mm flange 4NM and 2500RPM CNC synchronous servo motor and driver

SZGH-13100CC is 1000W ,4NM and 2500RPM servo motor, it can customized to you with 220V, and very general-purpose type. Imported feedback components, original imported low-noise motor.

There are two kinds type servo driver, SZGH-301 for 220V, that matching for 1KW servo motor.

Technical Specification
Motor Model SZGH-13100CC
Rated Power(KW) 1000
Rated Voltage (V) 220
Rated Current (A) 4
Rated Speed (RPM) 2500
Rated Torque (NM) 4
Peak Torque (NM) 12
Voltage Counstant(v/1000r/min) 72
Torque Coefficient(NM/A) 1
Rotor Inertia(Kg.m2) 0.85*10
Line-Line Resistance(Ω) 2.76
Line-Line Inductance(mH) 6.42
Machanical Time-Constant(Ms) 2.32
Encoder Resolution (PPR) 2500
Insulation Class Class F
Safet Class IP65
The Operating of Evironmenal Condition Temperature:-20℃- +45℃
Weight(Kg) 6.2
Package with air bag +polyfoam +carton+wooden

130mm Flange CNC Servo Motor High Power / Speed Control Ac Motor SZGH-13100CC

130mm Flange CNC Servo Motor High Power / Speed Control Ac Motor SZGH-13100CC

Product Dimension

130mm Flange CNC Servo Motor High Power / Speed Control Ac Motor SZGH-13100CC

Application

CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment, robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other requirements of the relatively high equipment.

130mm Flange CNC Servo Motor High Power / Speed Control Ac Motor SZGH-13100CC

About Package

1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets

2.Commercial packing: plastic bag+ foam boxes + carton

3.As the clients' requirement

About Shipping

We can ship to worldwide and declare lower value for customs.

Most orders will delivery goods within 3-5 business days after payment received (Except Holiday).

Our Services
Certified actual products - We have a zero-tolerance policy for asset recovery vendors.
Lowest package prices -Always offer lower price than other companies.
Professional technical engineer team- possible fastest response and support to client’ application demand.
Quality guarantee – Free, one-years warranty and life-long maintenance. Any quality problem, SZGH promise to refund.
Fast, professional and reliable International delivery – flexible and low cost delivery solution for clients.
Free payment mode by T/T, L/C, western union and Paypal can be available.

Company advantage:

Shenzhen Guanhong Automation CO.,LTD is one of the leading CNC & automatic company in China, specialized in designing projects, marketing, and oversea trading, having extensive experience in CNC package solution,

SZGH Advantage:

1)Certified actual products - We have a zero-tolerance policy for asset recovery vendors.

2) Lowest package prices -Always offer lower price than other companies.

3)Professional technical engineer team- possible fastest response and support to client’ application demand.

4) Quality guarantee – Free, one-years warranty and life-long maintenance. Any quality problem, GuanHong promise to refund.

5)Fast, professional and reliable International delivery – flexible and low cost delivery solution for clients.

130mm Flange CNC Servo Motor High Power / Speed Control Ac Motor SZGH-13100CC
