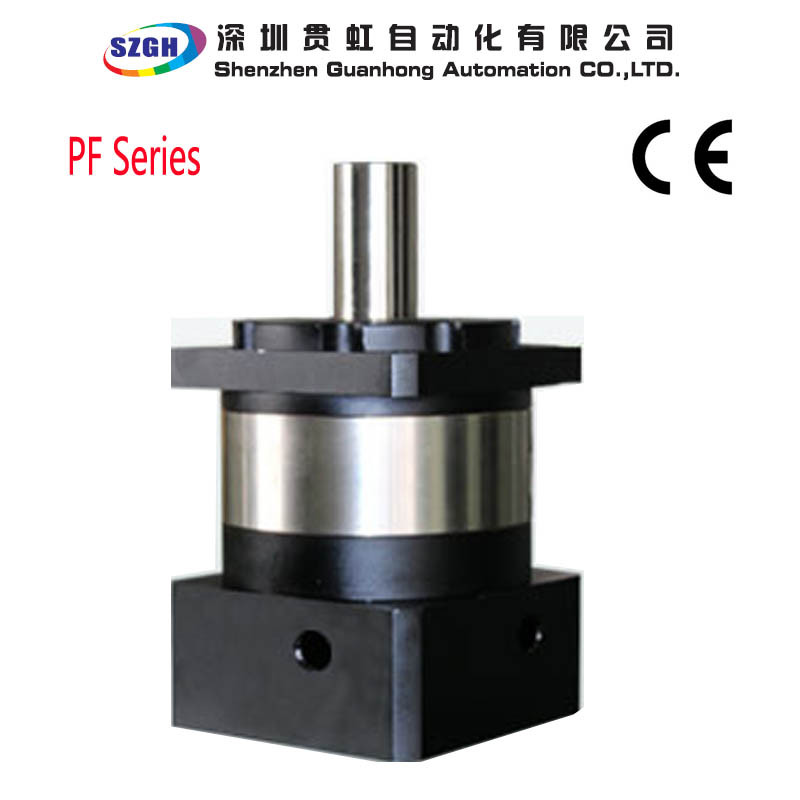

Hydraulic Gear Reduction Box Planetary Variable Speed Reducer For Servo Motor

Product Categories

Shenzhen Guanhong Automation Co., Ltd.

Contact Now

Name: Hydraulic Gear Reduction Box Planetary Variable Speed Reducer For Servo Motor
Brand: SZGH
Price: 1 USD

Brand Name : SZGH

Model Number : PF Series

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : Packaged with International Standard

H.S code : 9032899003

Feature 1 : customzied per motor size

Feature 2 : able to working with servo motor and stepper

Feature 3 : higher precision

Feature 4 : reduction ratio rangment

Feacture 5 : widely for motor flange

Contact Now

Hydraulic Gear Reduction Box Planetary Variable Speed Reducer For Servo Motor

1. Compact and lighter
• Weight from 1.5 kg to 80 kg (approximate);
• Length from 90.5mm to 250mm; 2. Integral gear ratio • Ratio from 3 to 1000;
3. Small backlash and all S type gear reducer are provided with tiny backlash within 10 min-arc.
4. Suitable for combination with any kind of servo motor. 5. Total enclosed design

Specification for Gear Reducer
Model	PL60	PL80	PL90	PL120	PL150	PL160	PL180
Continuous output torque (Kgf*m/Nm)	3.4/34	8.5/84	8.5/84	23.4/230	53/520	53/520	114/1120
Max.torque of load (Kgf*m/Nm)	2.5 times torque
Radius load on output shaft (kgf)	51	96	298	615	863	863	1331
Gear educer inertia(Kg*cm2)	0.306	0.73	0.73	1.09	3.09	3.09	9.35
Range of output shaft of servomotor diameter	within 14	within 19	within 19	within 24	within 42	within 42	within 55
L1 weight (kg)	1.6	3.3	2.8	5	16.4	15.2	37
L2 weight (kg)	2.1	4.3	3.4	7.2	17.6	16.2	46.4
L3 weight (kg)	2.6	5.3	4	8.2	18.9	18.5
Lead weight	0.12	0.65	0.65	1	1.5	1.5	2.9
