AC 220V 4 - Axis CNC Control System Center with High Anti Jamming Switch Power

Name: AC 220V 4 Axis CNC Control System Center with High Anti Jamming Switch Power
Brand: SZGH
Price: 1 USD

China AC 220V 4 - Axis CNC Control System Center with High Anti Jamming Switch Power wholesale

Brand Name : SZGH

Model Number : SZGH-CNC1000MDb-4

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : with carton, as the standard packing of SZGH

Application : Milling Machine

Milling Machine : ARM+DSP+FPGA

User store room : 128Mb

Power : High anti-jamming Switch Power

Rated Power : AC 220V

Displayer : 8 inch real color LCD

Contact Now

4 - Axis CNC Control System Center CNC1000MDb - 4 High Anti Jamming Switch Power

Product Description

CNC1000MDb-4 is 4 axis milling CNC controller with PLC,macro , ATC and encoder feedback function. And widely applied in CNC milling machinery; machining center; milling center; wood working machine; compatible with SZGH all of motor and driver.

Feature

PLC and macro function
Auto tool change function
matched with professional addtional panel in free.
640x480 8 inch real colour LCD displayer.
Touch screen main and sub panel.
High anti-jamming switch power.
USB movable U disc copy interface.
RS232 interface.
Spindle servo speed control/spindle frequency convertion speed control.
Manual pulse generator.
32 bits high performance, low power consumption industrial grade ARM microprocessor
English menu, program and interface, full screen edition
32X32 Input and output
64MB memory.
32Mb user store room.

Application: CNC milling machinery; machining center; milling center; wood working machine; numerically control grinder.

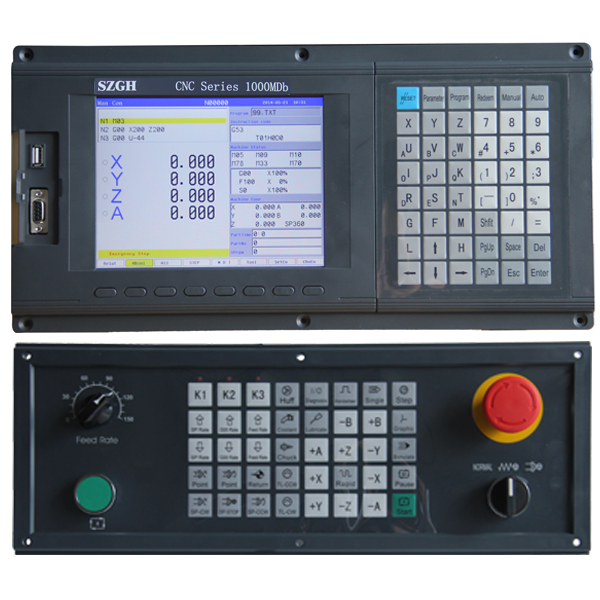

Product Picture

Product Tags:

cnc controller system

4 axis cnc controller

AC 220V 4 - Axis CNC Control System Center with High Anti Jamming Switch Power Images
