16/10A 4300w 1500rpm servo drive motor 27N•m 6.1*10-3kg • m2

Product Categories

Shenzhen Guanhong Automation Co., Ltd.

Contact Now

Name: 1610A 4300w 1500rpm servo drive motor 27Nm 61103kg m2
Brand: SZGH
Price: 1 USD

Brand Name : SZGH

Model Number : SZGH-18430AC

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : Packaged with International Standard

Frame Size : 180mm

Continuous Torque : 27N•m

Peak Torque : 67N•m

Rated Power : 4300w

Rated Voltage : 220/380V

Rated Current : 16/10A

Rated Speed : 1500rpm

Rotor Inrtia : 6.1*10-3kg•m2

Diameter of Axle : 35mm

Weight : 25.5kg

Contact Now

16/10A 4300w 1500rpm servo drive motor 27N•m 6.1*10-3kg • m2

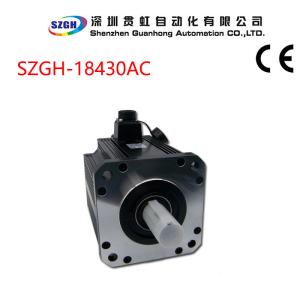

SZGH-18430AC is 4300W,27NM toque,1500RPM,AC Servo motor, 380V.

SZGH-503 ,servo driver, is matching for 4.3KW servo motor.

Application

CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment,

robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other

requirements of the relatively high equipment.

16/10A 4300w 1500rpm servo drive motor 27N•m 6.1*10-3kg • m2

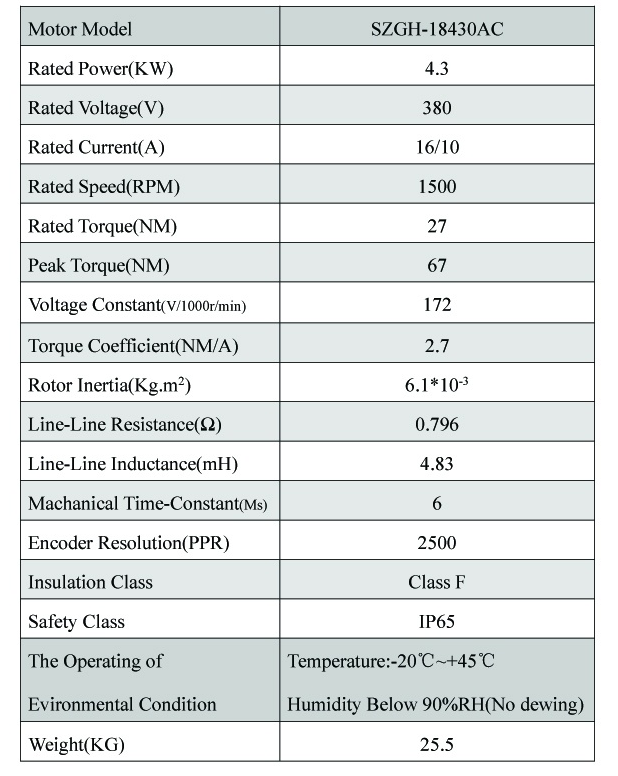

Technical Specifications

16/10A 4300w 1500rpm servo drive motor 27N•m 6.1*10-3kg • m2

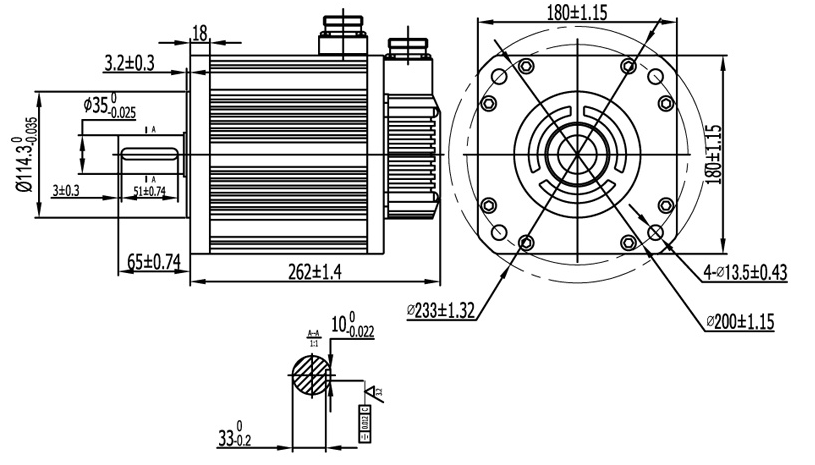

Dimension
