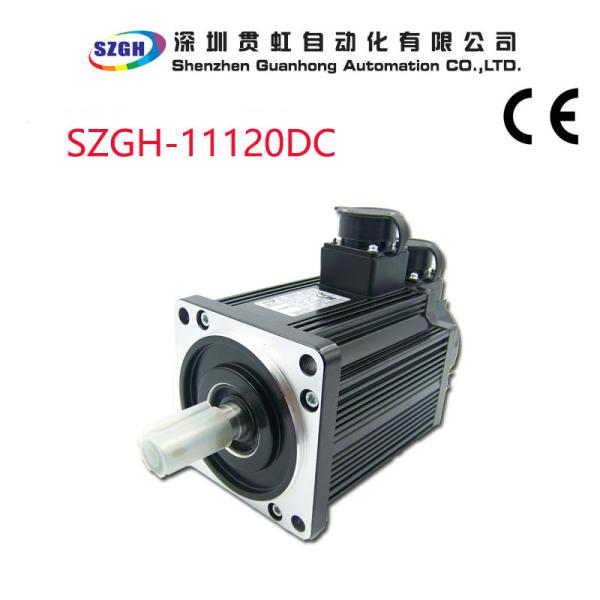

1200W ac synchronous motor with high rotation speed , 3000RPM

Name: 1200W ac synchronous motor with high rotation speed 3000RPM
Brand: SZGH
Price: 1 USD

China 1200W ac synchronous motor with high rotation speed , 3000RPM wholesale

Brand Name : SZGH

Model Number : SZGH-11120DC

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : Packaged with International Standard

Frame Size : 110MM

Rated Power : 1200W

Continuous Torque : 4N•m

Peak Torque : 12N•m

Rated Speed : 3000rpm

Rated Current : 5A

Rated Voltage : 220V

Rotor Inrtia : 5.4*10-4kg•m2

Diameter of Axle : 19mm

Weight : 6kg

Contact Now

1200W ac synchronous motor with high rotation speed , 3000RPM

SZGH-11120DC is 1200W and high of rotation speed with 3000RPM, and 4NM servo motor,optimum matching with our AC servo driver to real ize optimum servo performance.

There are two kinds type servo driver, SZGH-030M2,SZGH-201,SZGH-301, that matching for 1200W servo motor.

There is also one dual servo driver,SZGH-302,that can control two pcs of 1200W servo motors synchronously.

Related Model : SZGH-11120BC

Application

CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment,

robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other

requirements of the relatively high equipment.

1200W ac synchronous motor with high rotation speed , 3000RPM

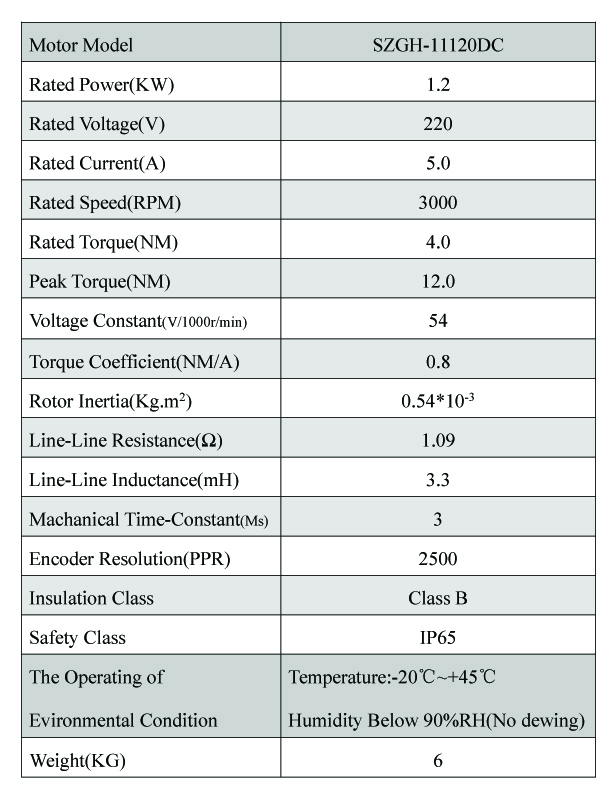

Specifications

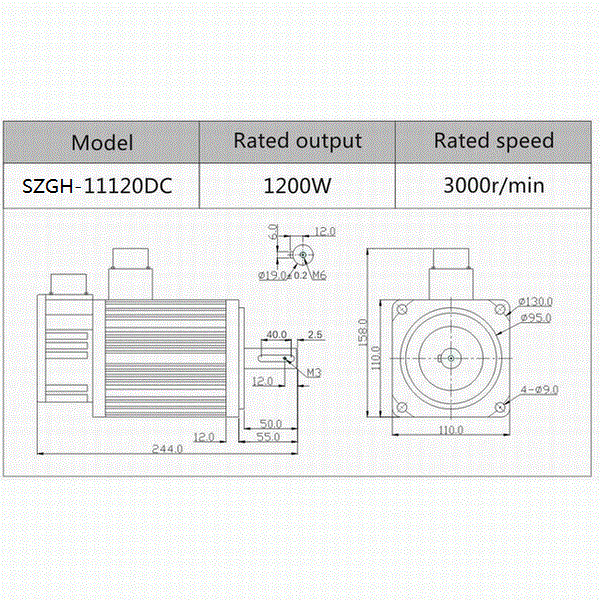

Dimension

Product Tags:

synchronous motor

ac servo motor

1200W ac synchronous motor with high rotation speed , 3000RPM Images
