600W Peak Torque CNC servo motor 5.73NM Rated Speed 5.73NM

Product Categories

Shenzhen Guanhong Automation Co., Ltd.

Contact Now

Name: 600W Peak Torque CNC servo motor 573NM Rated Speed 573NM
Brand: SZGH
Price: 1 USD

Brand Name : SZGH

Model Number : SZGH-06060DC

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : Packaged with International Standard

Frame Size : 60mm

Rated Power : 600W

Continuous Torque : 1.91NM

Peak Torque : 5.73NM

Rated Speed : 3000RPM

Rated Current : 3.5A

Rated Voltage : 220V

Rotor Inrtia : 0.39kg.m^2*10e-4

Encoder Resolution : 2500PPR

Diameter of Axle : 14mm

Weight : 2.07

Matched Driver : SZGH-201

Contact Now

600W Peak Torque 5.73NM Rated Speed 5.73NM High precision CNC servo motor

SZGH-06060DC 600W SERVO MOTOR is 600W servo motor,1.91NM,3000RPM, it can working with high precision servo drivers.

There are two kinds type servo driver, SZGH-020M,SZGH-201,that matching for 600W servo motor.

There is also one dual servo driver,SZGH-202,that can control two pcs of 600W servo motors synchronously.

Application

CNC Machinery, printing equipment, packaging equipment, textile equipment, laser processing equipment,

robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other

requirements of the relatively high equipment.

600W Peak Torque CNC servo motor 5.73NM Rated Speed 5.73NM

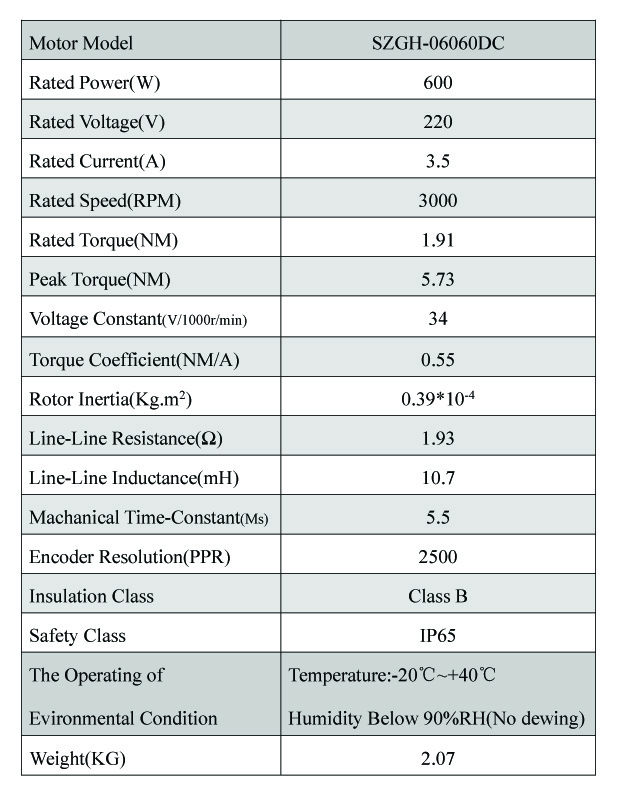

Specifications

600W Peak Torque CNC servo motor 5.73NM Rated Speed 5.73NM

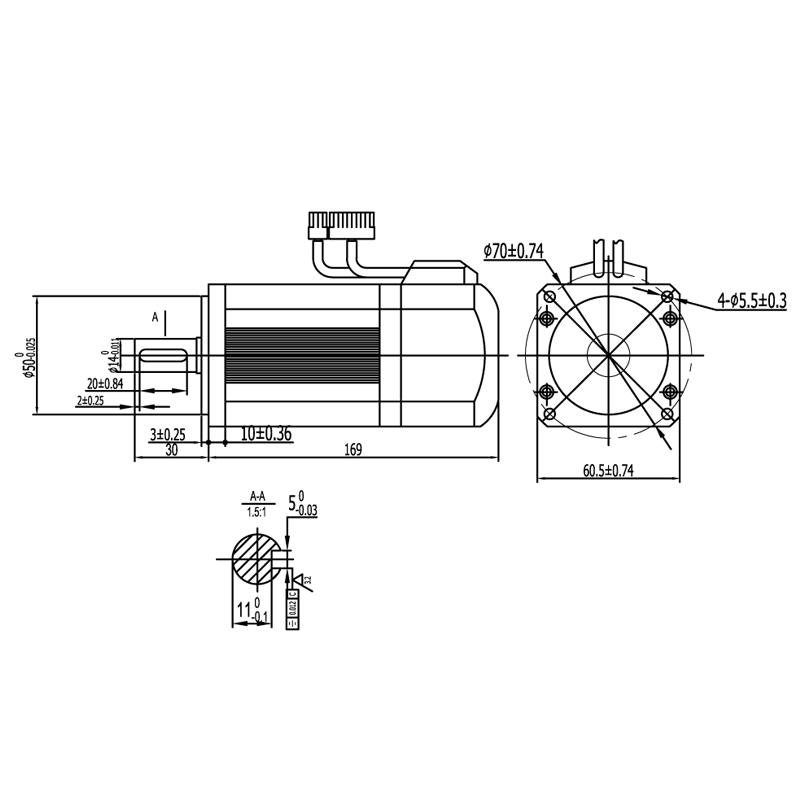

Dimension
