Rated Torque 24 N.m 3.7KW High Precision AC Spindle Servo Motor for CNC System

Product Categories

Shenzhen Guanhong Automation Co., Ltd.

Contact Now

Name: Rated Torque 24 Nm 37KW High Precision AC Spindle Servo Motor for CNC System
Brand: SZGH
Price: 1 USD

Brand Name : SZGH

Model Number : SZGH09-2-24-3.7/5.5-4-1500

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : Packaged with International Standard

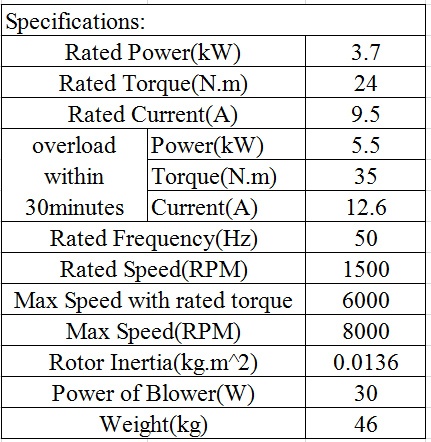

Rated Power(KW) : 3.7KW

Rated Torque(N.m) : 24N.m

Rated current(A) : 9.5A

Rated Frequency (Hz) : 50Hz

Weigth(kg) : 46kg

Contact Now

Rated Torque 24 N.m 3.7KW High Precision AC Spindle Servo Motor for CNC System

SZGH09-2-24-3.7/5.5-4-1500: AC Servo Spindle Motor, rated torque is 24Nm, rated power is 3.7kW, matched driver is SZGH-S4T3P7.

CW&CCW: Speed Error +/- 1RPM , Acceleration / Deceleration time of 3000RPM : 1second ;

Independent Quasi Stop: Positioning with High Precision(0.03^.);

Rigid Tapping: Max speed of tapping is 3000RPM , Min of dental work is M3 ;

Function of C-Axis: Indexing Accuracy: +/-1 Pulse ; Turning / Milling: 0.01rpm ;

Cutting in Low Speed: Overload (3 times holding torque), ensure stablity of cutting, applied in casting process;

High - Speed Precision Machining: Constant power output over 4000RPM, stable ratoting speed, ensure finish;

Strong Applicability: Match for CNC System , PLC etc.

Powerful Development : Custome Manufacturing .

Rated Torque 24 N.m 3.7KW High Precision AC Spindle Servo Motor for CNC System
