Small Asynchronous Servo Motors Encoder 50Hz 2.2KW Built - In Spindle Motor

Name: Small Asynchronous Servo Motors Encoder 50Hz 22KW Built In Spindle Motor
Brand: SZGH
Price: 1 USD

China Small Asynchronous Servo Motors Encoder 50Hz 2.2KW Built - In Spindle Motor wholesale

Brand Name : SZGH

Model Number : SZGH08-4-14-2.2/3.7-4-1500

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : Packaged with International Standard

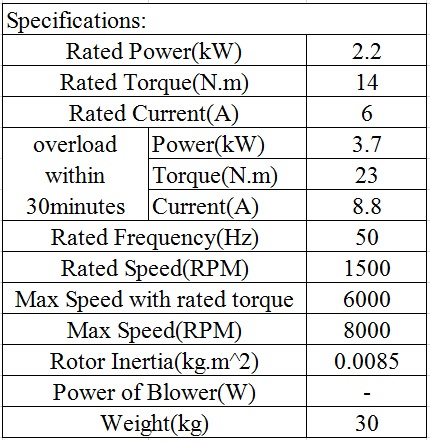

Rated Power(KW) : 2.2KW

Rated Torque(N.m) : 14N.m

Rated current(A) : 6A

Rated Frequency (Hz) : 50Hz

Weigth(kg) : 30kg

Rotor inertia : 8.5*10-3kgm2

Contact Now

Small Asynchronous Servo Motors Encoder 50Hz 2.2KW Built - In Spindle Motor

High performance Control function comprehensive: stable speed control, accurate position control,

excellent torque control.

Safe & Reliable Products comply with international standards, through the CE certification. Set up multiple protection circuit, the comprehensive protection of safet

CW&CCW: Speed Error +/- 1RPM , Acceleration / Deceleration time of 3000RPM : 1second ;

Independent Quasi Stop: Positioning with High Precision(0.03^.);

Rigid Tapping: Max speed of tapping is 3000RPM ,Min of dental work is M3 ;

Function of C-Axis: Indexing Accuracy: +/-1 Pulse ; Turning / Milling: 0.01rpm ;

Cutting in Low Speed: Overload(3 times holding torque), ensure stablity of cutting, applied in casting process;

High - Speed Precision Machining: Constant power output over 4000RPM, stable ratoting speed, ensure finish;

Strong Applicability: Match for CNC System , PLC etc.

Powerful Development : Custome Manufacturing . Small Asynchronous Servo Motors Encoder 50Hz 2.2KW Built - In Spindle Motor

Small Asynchronous Servo Motors Encoder 50Hz 2.2KW Built - In Spindle Motor
