High Precision Planetary Gear Box 90 Degree Servo Motor Reducer Gearbox

Brand Name : SZGH

Model Number : WPL Series

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : Packaged with International Standard

Flange range : suitable almost motor flange

Ratio : with full of necessary ratio

H.S code : 9032899003

Customazied : available

Angle : 90 degree

Installation : easy per motor size

Contact Now

High Precision Planetary Gear Box 90 Degree Servo Motor Reducer Gearbox

1. Compact and lighter
• Weight from 1.5 kg to 80 kg (approximate);

• Length from 90.5mm to 250mm;

2. Integral gear ratio

• Ratio from 3 to 1000;
3. Small backlash and all S type gear reducer are provided with tiny backlash within 10 min-arc.

4. Suitable for combination with any kind of servo motor.

5. Total enclosed design

Specification for Gear Reducer
Model WPL60 WPL80 WPL90 WPL120 WPL140 WPL160 WPL200
Continuous output torque (Kgf*m/Nm) 3.4/34 8.5/84 8.5/84 23.4/230 53/520 53/520 114/1120
Max.torque of load (Kgf*m/Nm) 2.5 times torque
Radius load on output shaft (kgf) 51 96 298 615 863 863 1331
Gear educer inertia(Kg*cm2) 0.306 0.73 0.73 1.09 3.09 3.09 9.35
Range of output shaft of servomotor diameter within 14 within 19 within 19 within 24 within 42 within 42 within 55
L1 weight (kg) 1.6 3.3 2.8 5 16.4 15.2 37
L2 weight (kg) 2.1 4.3 3.4 7.2 17.6 16.2 46.4
L3 weight (kg) 2.6 5.3 4 8.2 18.9 18.5 　
Lead weight 0.12 0.65 0.65 1 1.5 1.5 2.9

Ratio Table of Gear Reducer
Model L1 L2 L3
WPL60 3,4,5 9,12,15,20,25 27,36,45,48,60,75,100,125
WPL80/90/120 3,4,5,7 9,12,15,20,21,25,28,35,49 45,48,60,75,80,100,125,140,175,245,343WW
WPL140/160 3,5,7,10 9,12,15,20,,25,28,30,40,50,70 60,75,80,100,150,200,300,400,500,700,1000
WPL200 3,5,7,10 9,15,21,25,30,35,49,50,70,100 　

　

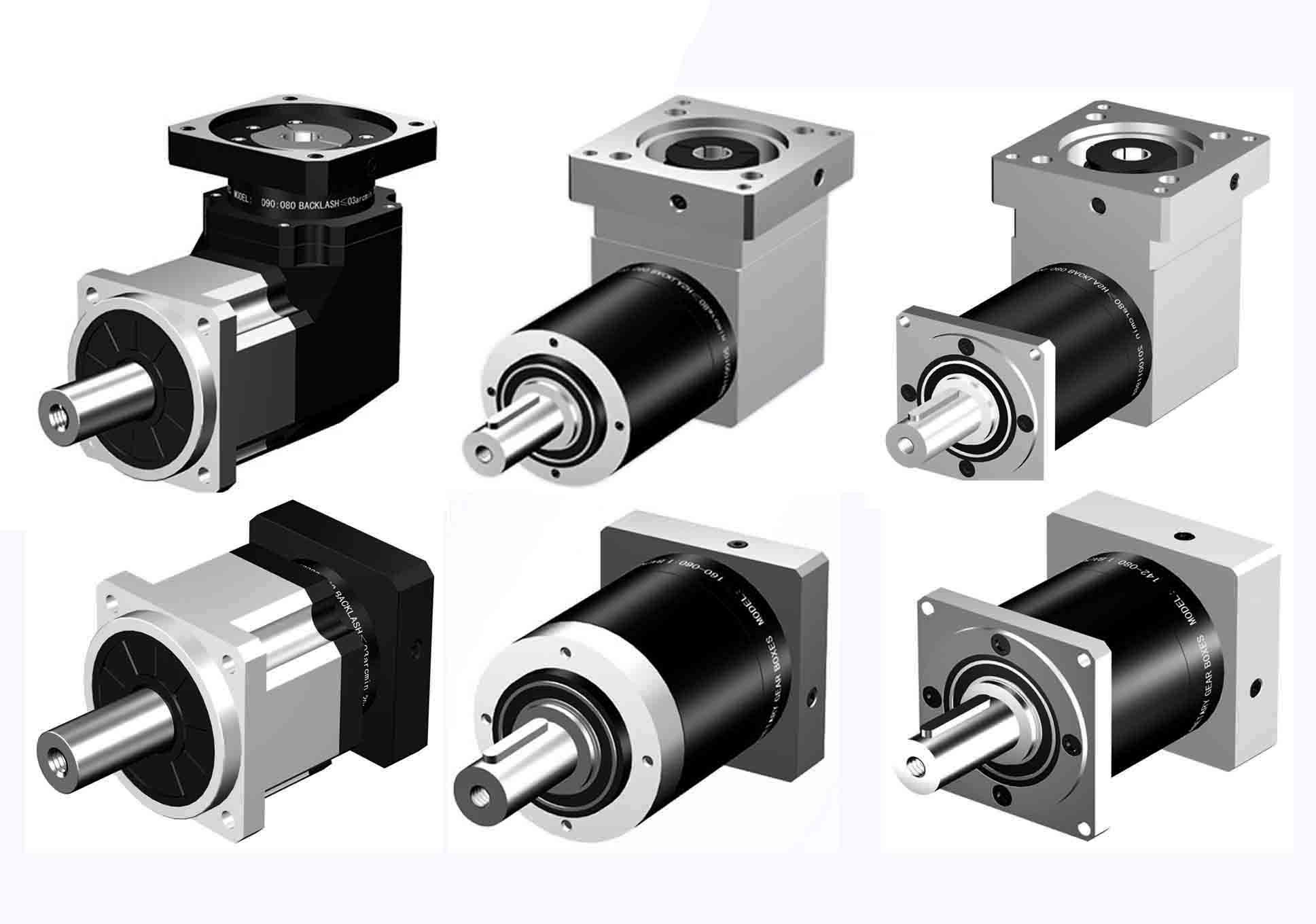

Product picture:

High Precision Planetary Gear Box 90 Degree Servo Motor Reducer Gearbox
